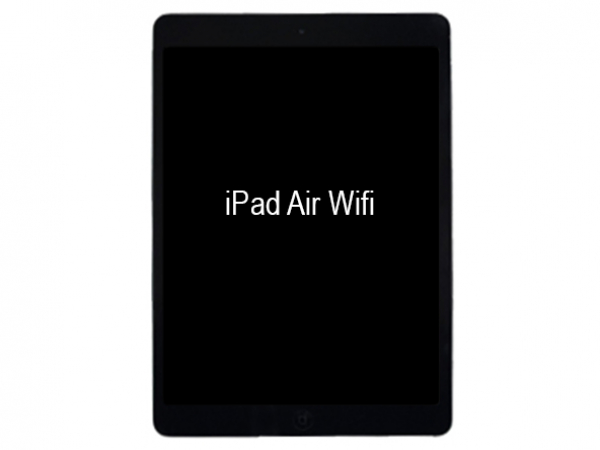

iPad Air WIFI Display Glass and Touchscreen Replacement

Send this link via e-mail


thumb image 1
thumb image 2
thumb image 3

Step 1 - Before You Start

  • - Discharge the iPad Air's battery to less than 25% before you begin disassembly.
    - Turn off your iPad.

  • Caution:

    - If the battery is swollen, take the necessary safety steps.
    - Don't heat up your iPad.
    - Use hand and eye protection.

  • Tip:

    - If the display glass is damaged, tape over the glass to prevent additional breakage.
    - Lay overlapping strips of clear self-adhesive tape over the display.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 2 - Opening Procedure
Back to top

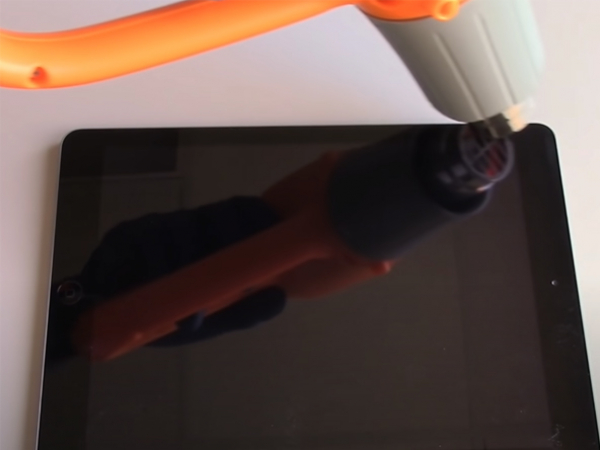

  • - Apply heat gun or hairdryer to the lower edge of the iPad for about a minute.
    - This will allow us to free the screen from the adhesive.
    - Wedge the metal pry tool underneath the glass.
    - The metal pry tool should be in line with the glass.
    - Now we can gradually slide it around the side.
    - Keep heating up the edge of the iPad.
    - Open the iPhone by swinging the display up from the left side.
    - Carefully free the remainder of the adhesive because some of the cables are still connected.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 3 - Removing The Home Button
Back to top

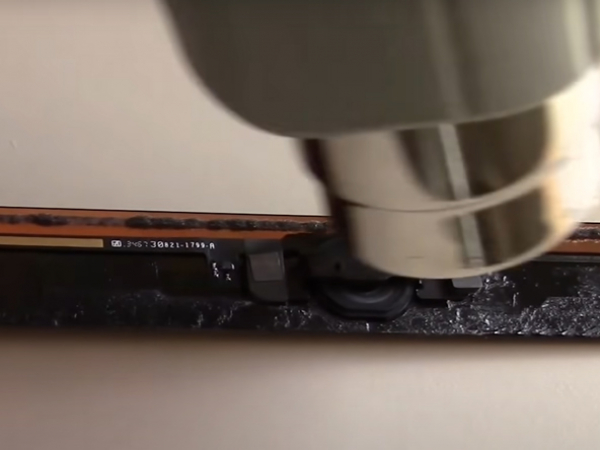

  • - Start the process by heating up the area.
    - Take the metal pry tool and wedge it underneath to free the home button from the adhesive.
    - Carefully peel the cable off from the original screen.
    - Remove the plastic home button by pushing it up from the opposite side.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8

Step 4 - Removing The LCD Screen
Back to top

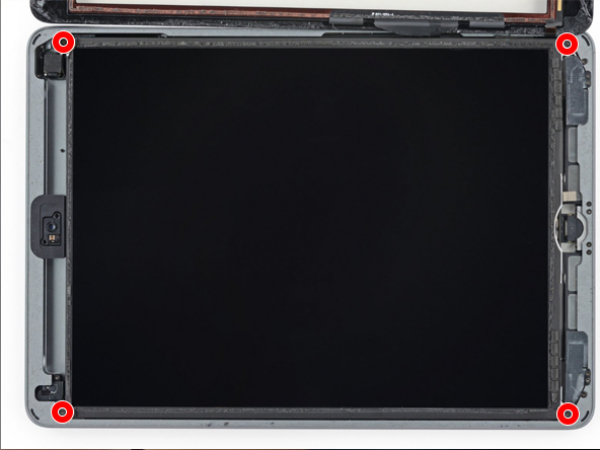

  • - Remove the four Philips screws in each corner of the LCD.
    - The two screws at the top are hidden by black tape.
    - Lift up one of the corners of the LCD to start the removal process.
    - Be careful because some of the cables are still connected.

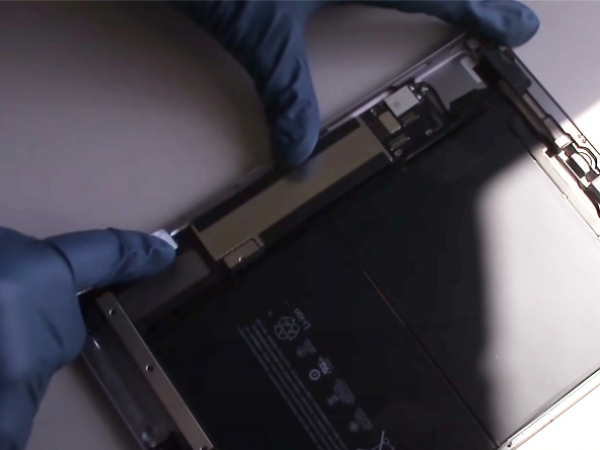

    - Remove the metal cover by unscrewing the three Phillips screws.
    - Using the pry tool, lift up the metal cover.
    - Disconnect the rest of the digitizer cables.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 5 - Removing Remaining Components From The Screen
Back to top

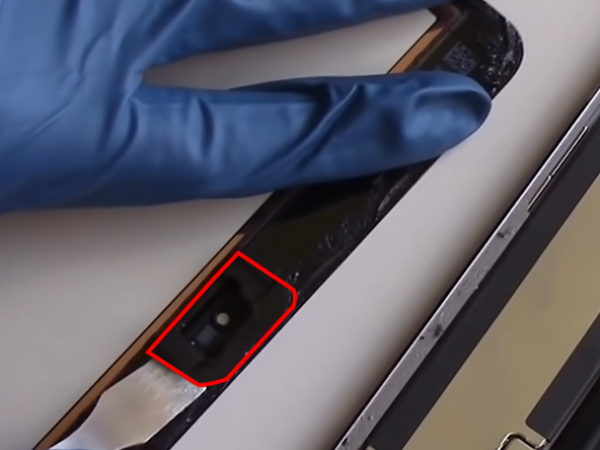

  • - Remove the components with heat and the metal pry tool.
    - Remove the small ring associated with the home button.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9

Step 6 - Reinstall The LCD Screen
Back to top

  • - Work your way around the perimeter of the iPad, scraping the rest of the adhesive tape or broken glass.
    - Prepare the new screen for installation.
    - Remove the plastic protection from the inner perimeter of the screen.
    - Reinstall the home button flex cable and bracket.
    - Reinstall the camera bracket.
    - Install the pre-cut adhesive strips around the inner perimeter of the iPad.
    - Plug in the digitizer cables.
    - Reinstall the screws that are holding the metal plate.
    - Tuck the screw corners underneath the adhesive.
    - Insert the four screws into each corner.
    - Peel off the paper backing of the double-sided adhesive strips.
    - Peel off the plastic protector.
    - Gently place the screen until all the sides of the screen are flush.

thumb image 1
thumb image 2

Step 7 - End Process
Back to top

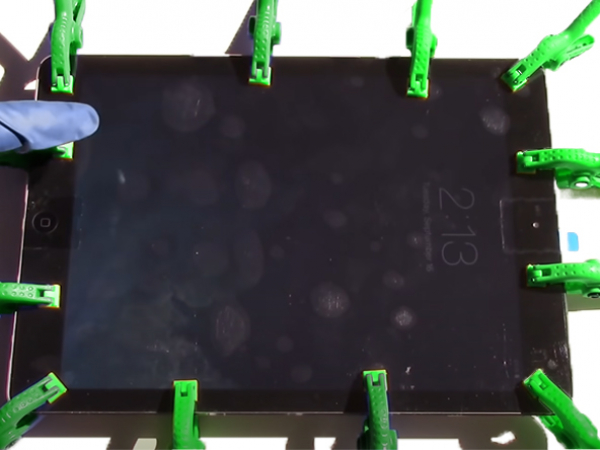

  • - Apply the plastic clamps around the perimeter of the iPad.
    - Remove the plastic cover and enjoy.
